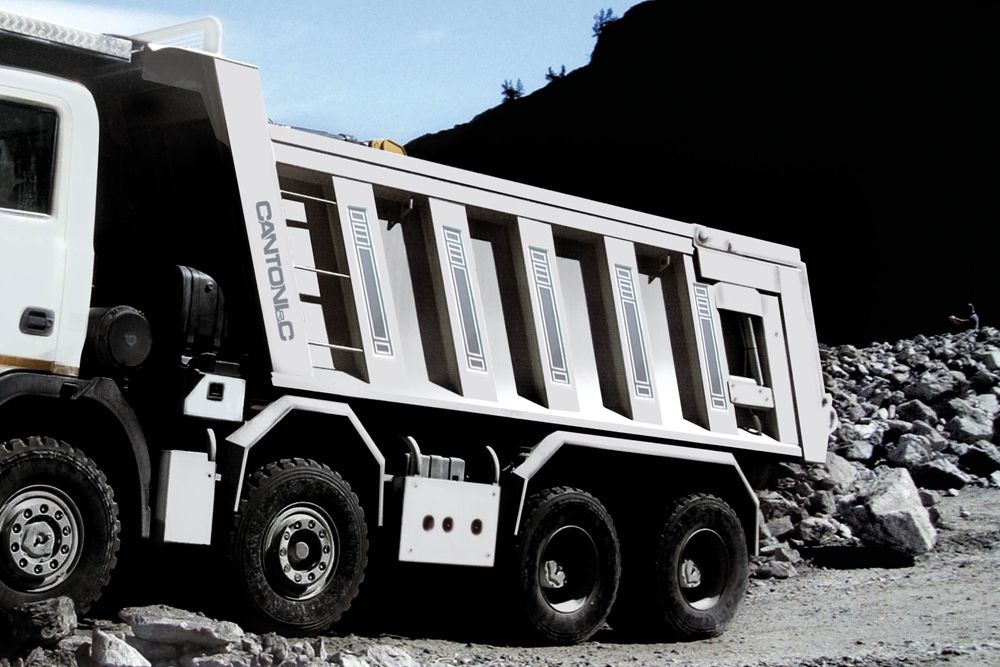

PF SEMIROCCIA REINFORCED Square Shape

PF SEMIROCCIA REINFORCED Square Shape

(Rear tipper)
This model belongs to the rear tippers group with frontal cylinder.
The PF SEMIROCCIA REINFORCED belongs to the same family of the SEMIROCCIA tippers. The difference is the special reinforced structure with increased thickness of the steel used to produce the frame side members, the brackets under the bodyfloor and the perimeter uprights on the boards, that make it particularly suitable for heavy duties. Furthermore, the antiabrasion steel thickness of the bodyfloor (10 mm) and of the boards (8 mm) are increased compared to the PF SEMIROCCIA version. The cylinder is hinged at the two ends with spherical joints, which grant it a long lifetime and do not force it, in case of discharging materials on a rough ground, to work bending. The high stability during the tipping operations that this body can ensure, can be improved with our “historical” optional “Stabilizing-Bar”, which has always marked our tipper as per guarantee of reliability and stability also in precarious tipping conditions.

Standard features

  • Square tipper-body
  • Frontal telescopic cylinder with chromium first extension
  • Bodyfloor in antiabrasion steel HB450, thickness 10 mm
  • Fixed sideboards in antiabrasion steel HB400, thickness 8 mm
  • Special reinforced structure for heavy duties
  • Frontboard with roof cab-protection
  • Reargate with automatic unhooking device (mechanical)
  • Pneumatic lifting control
  • Pneumatic lowering control by modulating system P.T.O. and pump included
  • Spare-wheel holder with mechanical winch, between cab and tipper
  • Zinc-plated tool box, with key
  • Strong steel rear mudguards Safety pole
  • Lateral protections Lateral lights
  • Rear reflective panels
  • Rear reflective marker strips
  • CE Quality and Safety standards with “Use and Maintenance” handbook
  • Painting process:
    - Shotblasting
    - Polyacrylic primer
    - Polyacrylic enamel paint
    - Painting in cab colour with grey decostripes

Technical info

  • Rear square tipper
  • Shotblasting - Enamel painting
  • Bodyfloor & boards in antiabrasion steel
  • Frontal telescopic cylinder
  • GVW 33 - 40 - 50 ton.
