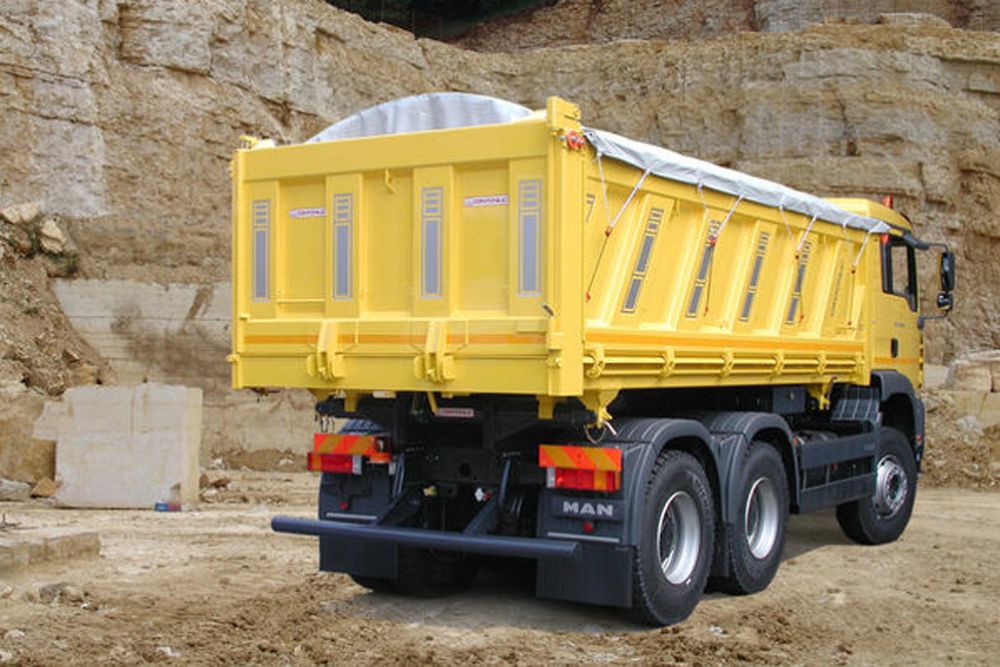

TL SEMIROCCIA Square Shape

TL SEMIROCCIA Square Shape

(Three-way tipper)
This model belongs to the three-way tippers group with central cylinder.
The characteristics and thickness of the antiabrasion steel of the frame side members, the shelves under the bodyfloor and pillars on the boards, make it suitable for inert materials transport, such as sand, gravel and demolition material. It is the most versatile of the range and, when equipped with crane and lateral hydraulic board, it becomes a general purpose tipper, both in construction and warehouse sites. The “Anti-crossing of pins” system, imposed by the CE Machinery Directive, can grant the user from any wrong usage of pins.

Standard features

  • Three-way square tipper-body
  • Central telescopic cylinder with chromium first extension
  • Bodyfloor in antiabrasion steel HB450, thickness 8 mm
  • Sideboards in antiabrasion steel HB400, thickness 5 mm
  • Two-ways opening sideboards
  • Frontboard with roof cab-protection
  • Reargate with automatic unhooking device (mechanical)
  • Pneumatic lifting control
  • Pneumatic lowering control by modulating system P.T.O. and pump included
  • Spare-wheel holder with mechanical winch, between cab and tipper
  • Zinc-plated tool box
  • Strong steel rear mudguards
  • Safety pole
  • Lateral protections Lateral lights
  • Rear reflective panels
  • Rear reflective marker strips M.C.T.C. final inspection (Italian Market)
  • CE Quality and Safety standards with “Use and Maintenance” handbook
  • Painting process:
    - Shotblasting
    - Polyacrylic primer
    - Polyacrylic enamel paint
    - Painting in cab colour with grey decostripes

Technical info

  • Three-way tipper
  • Shotblasting - Enamel painting
  • Bodyfloor & sideboards in antiabrasion steel
  • Central telescopic cylinder
  • GVW 33 - 40 - 50 ton.
