Jolly - Light Range
(THREE-WAY TIPPERS UP TO 7 TON OF GVW)
The JOLLY range takes place in the market segment
of commercial vehicles up to 7 tons of total weight.
The structure of the JOLLY tipper is equipped with
outstanding features of strength, functionality and resistance,
due to the use of “cold” folded steel sheets.
Flexibility, easy use and indestructibility characterize
this product. The JOLLY tipper is produced in Threeway
tipping system only.
The lifting is controlled by a telescopic central chromium-
plated cylinder with electrical control activated
by a mini electric power-pack unit or with a mechanical
control with P.T.O.
The bodyfloor has a thickness of 3 mm.
The opening boards are removable, in steel or aluminium
alloy.
The lever pillars make easier and faster the opening
and closing of the boards.
The elegant bicolour is very peculiar: the grey boards,
or the aluminium boards, contrast with anthracite
painted poles-carrier and bodyfloor.
The special “Cataphoresis-Powder” painting process
provides exceptional durability against rust and other
corrosive agents.
Download
Technical info
- Three-way tipper
- Painting system: Cataphoresis - Powder
- Steel or aluminium boards - Bodyfloor in steel sheet
- Central telescopic cylinder
- GVW 3,5 - 7 ton.
Standard features
- Nr. 2 lateral winches

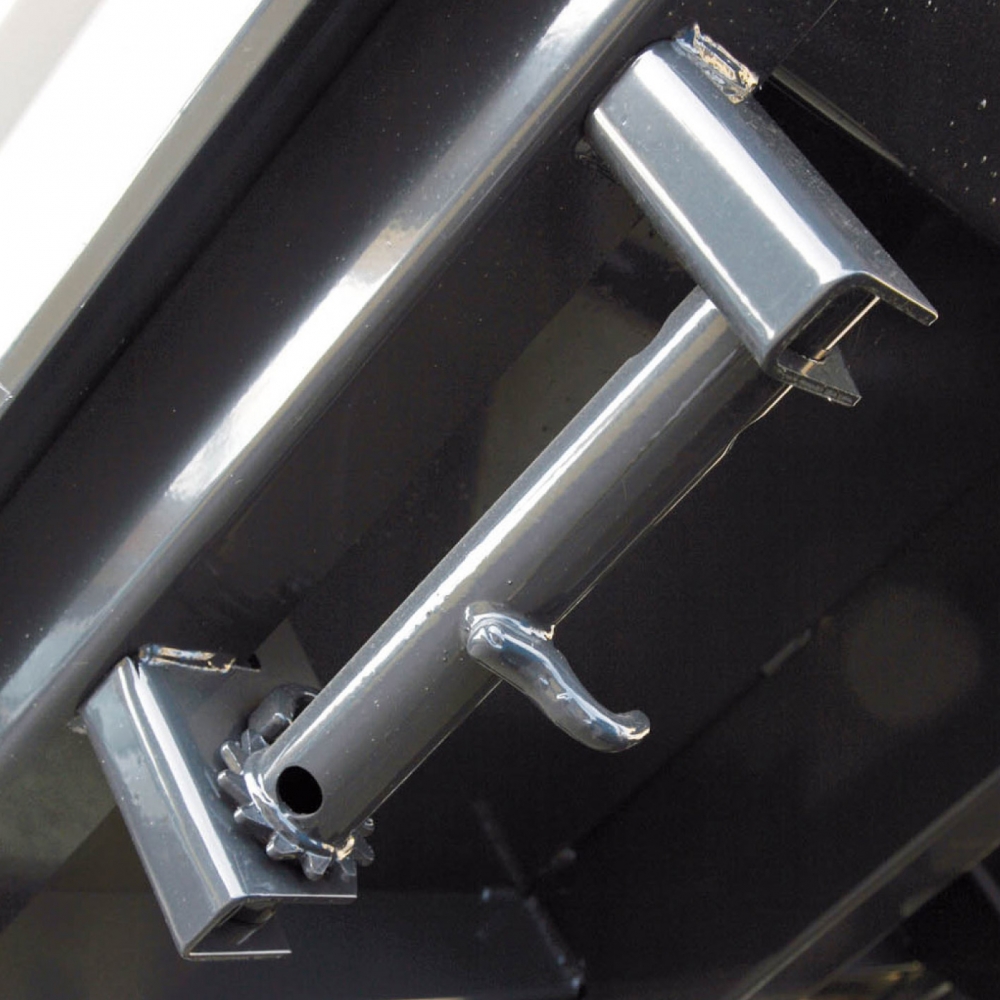

- Removable front poles-carrier with nonslip rubber protection
- Rear poles-carrier fixed on the reargate with nonslip rubber protection (steel boards version only)
- Rescue draw-hook

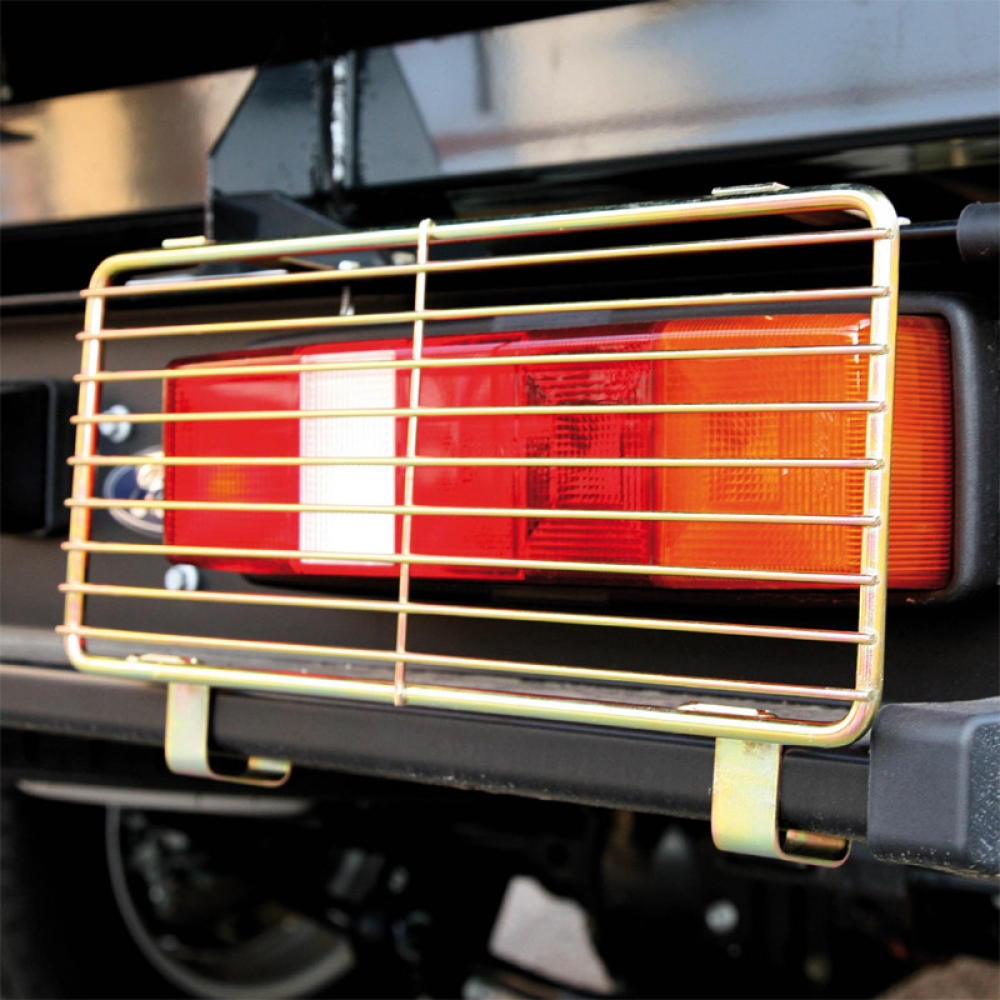

- Protective nets for rear lights

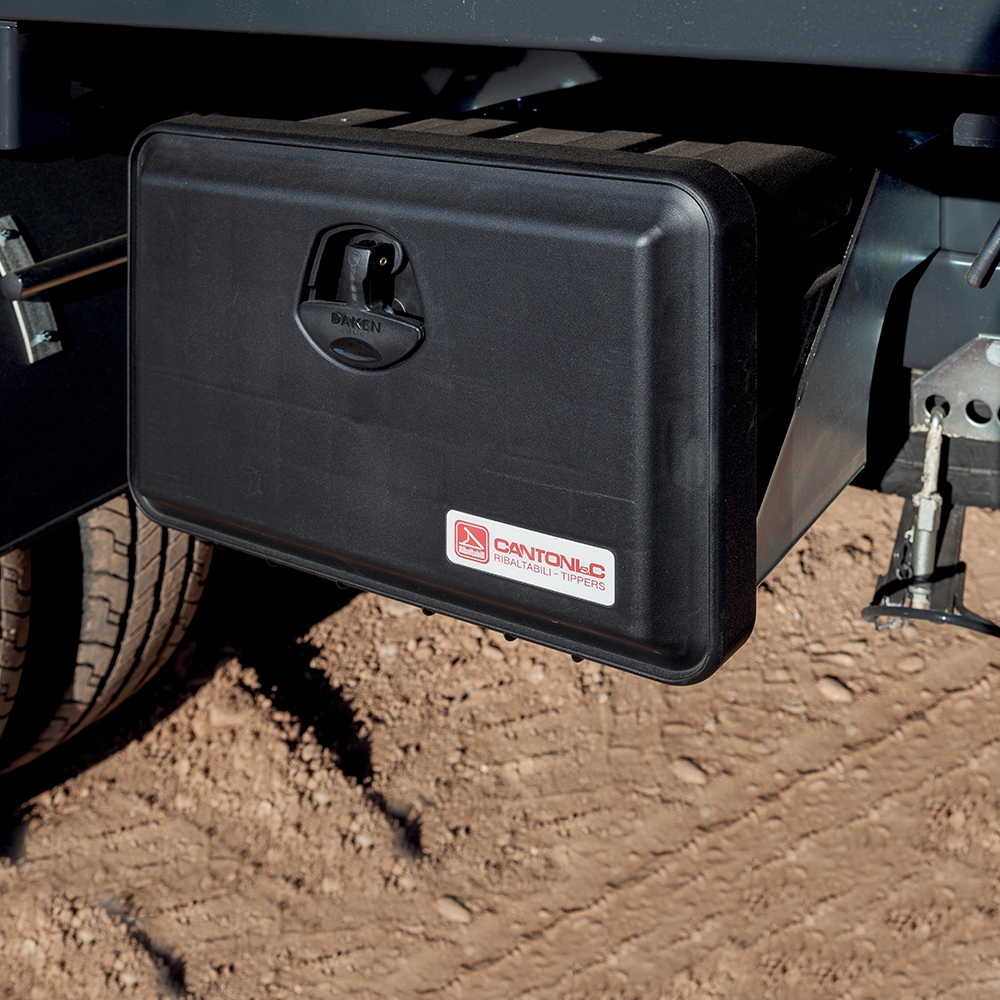

- Tool box

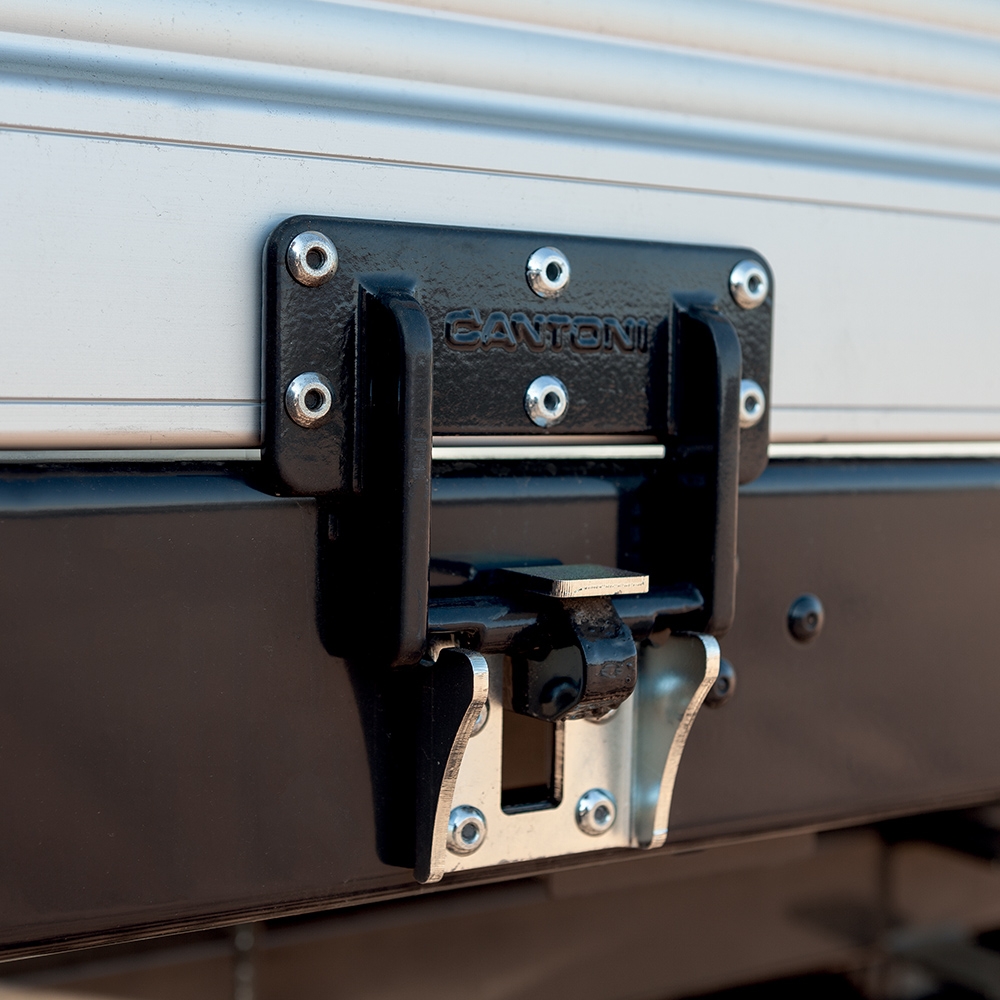

- Two way opening reargate
Jolly - Light Range
Customization

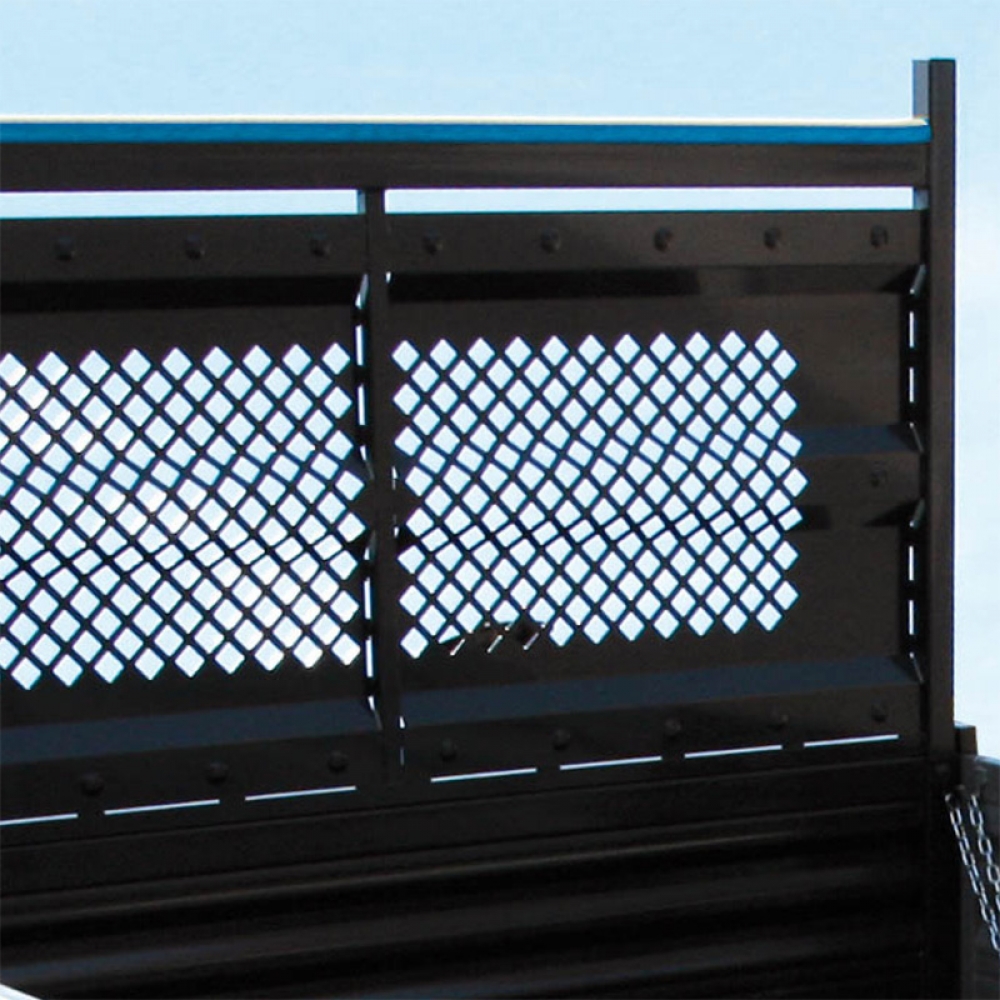

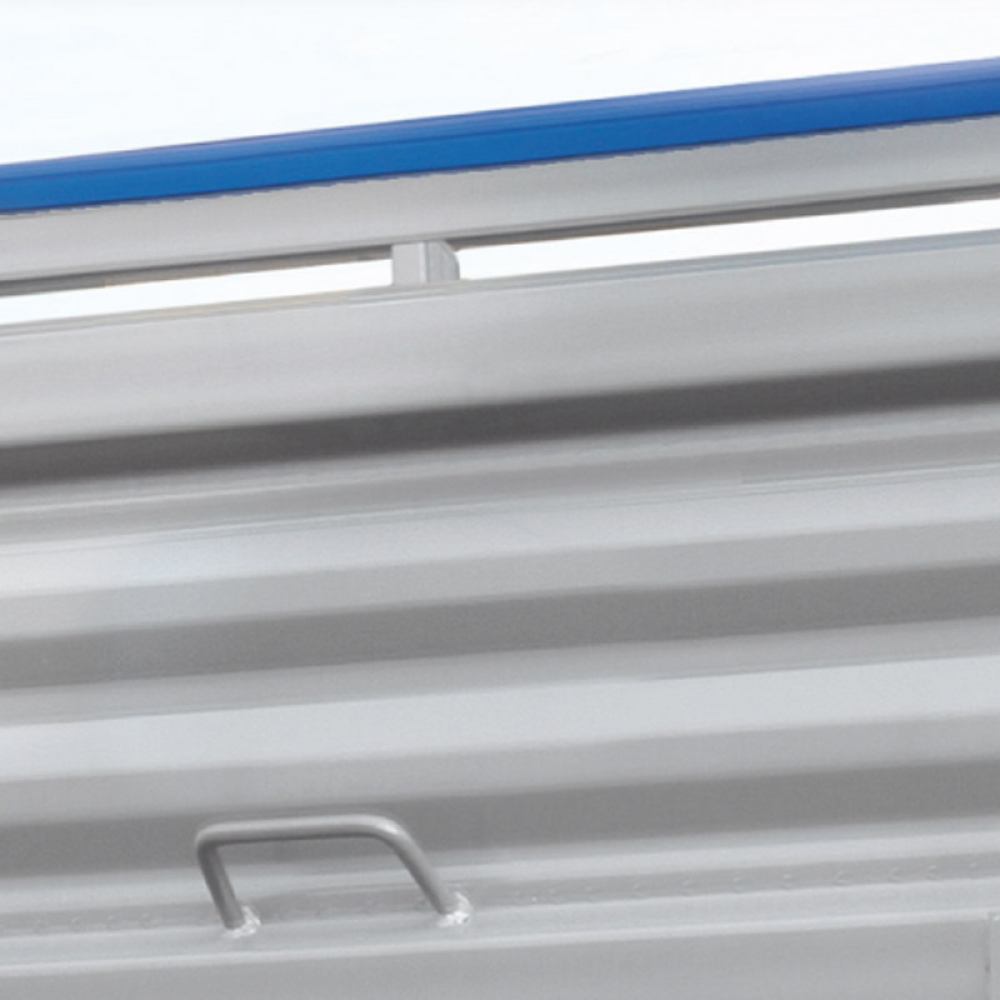

BOARDS IN REINFORCED ALUMINIUM "CANTONI",
ROLL-BAR, POLES-CARRIER, OVER-BOARDS
AND OUT OF STANDARD PAINTING
