PF ROCCIA Square Shape

PF ROCCIA Square Shape

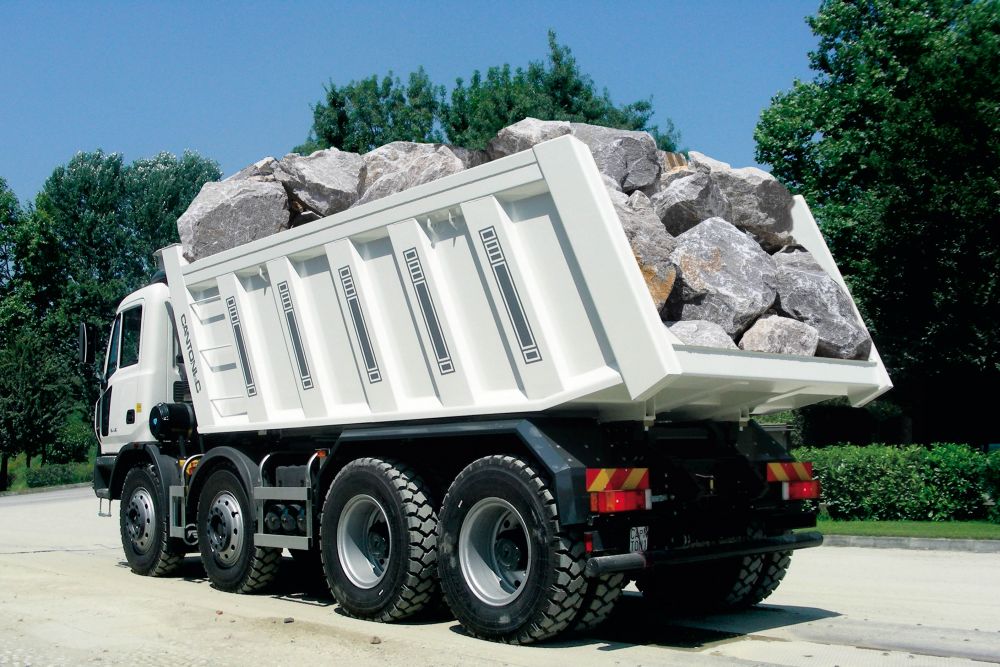

(Rear tipper) This model belongs to the rear tippers group with frontal cylinder. It is suitable for transport and tipping of heavy materials and rocks thanks to a special reinforced structure.
A special rib inside the pillars and inside the last two rear uprights, strengthens the structure in the back, making it solid. The high stability during the tipping operations that this body can ensure, can be improved with our historical optional “Stabilizing-Bar”, which has always marked our tipper as per guarantee of reliability and stability also in precarious tipping conditions.

This tipper has two versions:

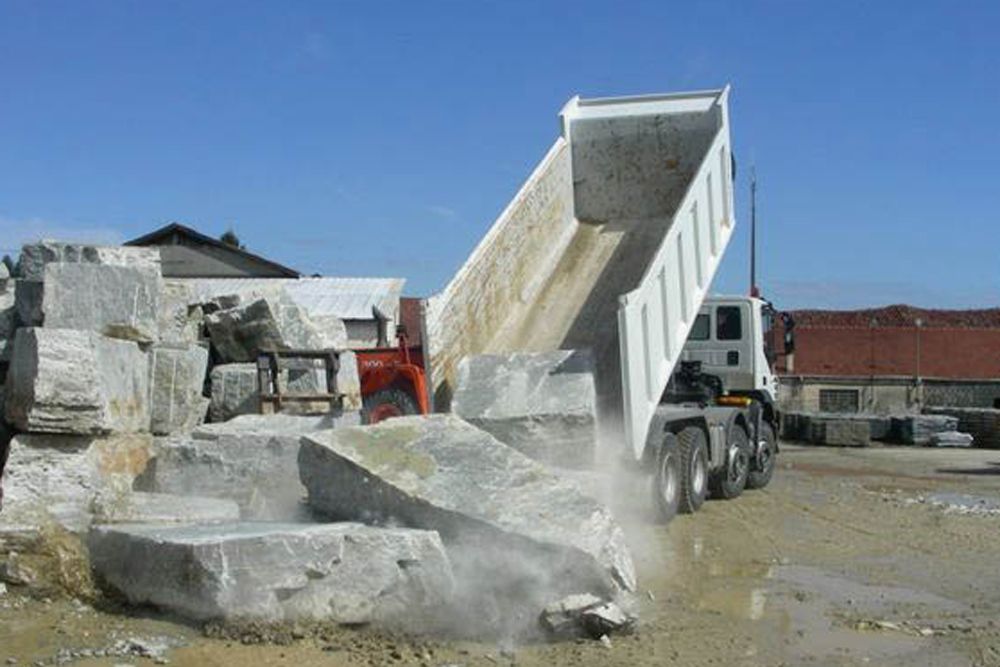

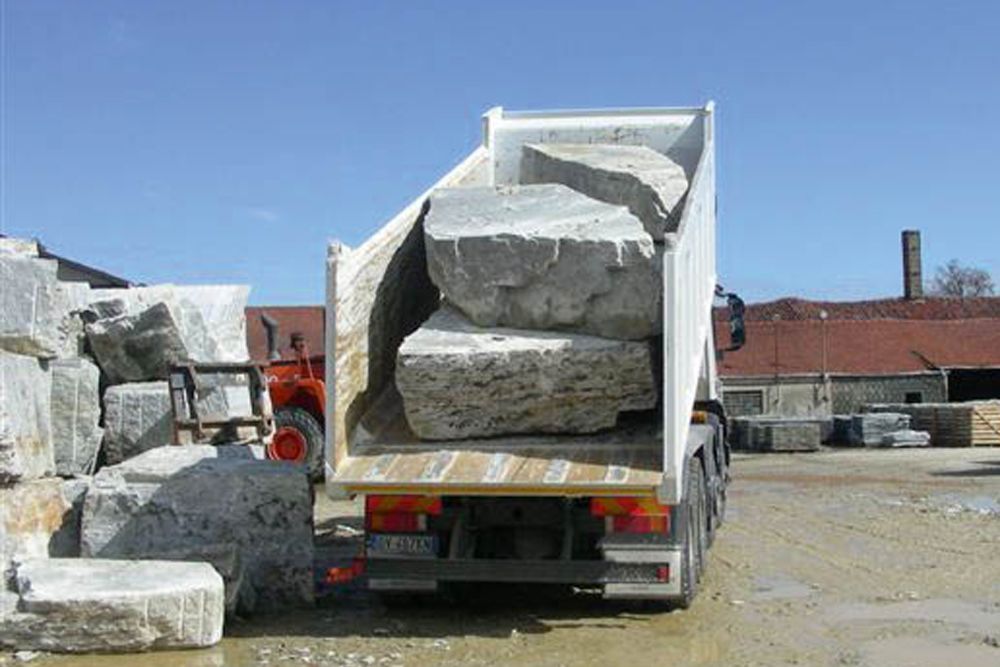

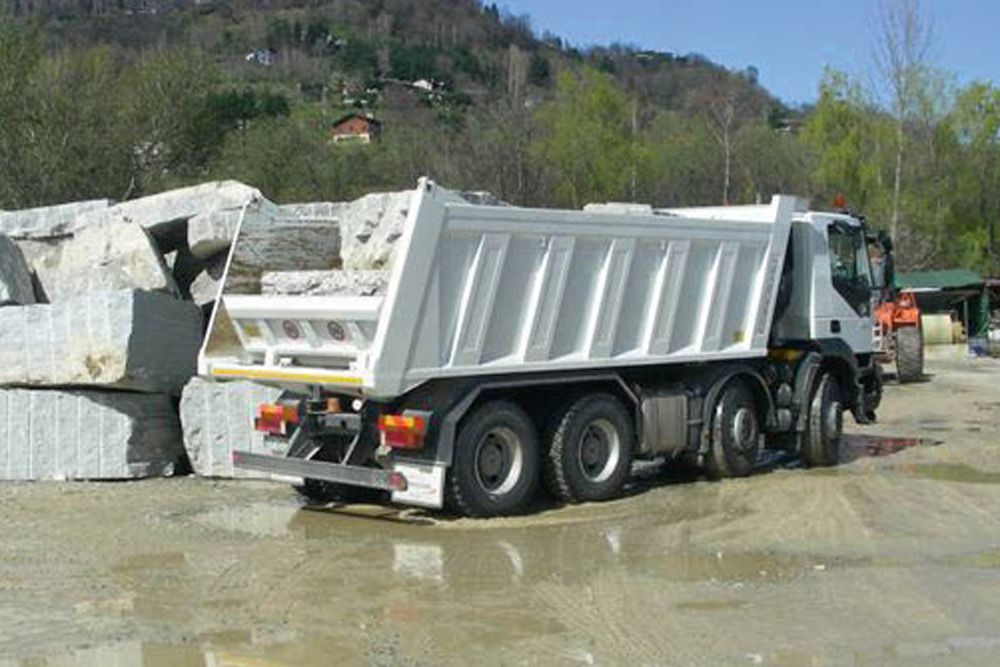

WITHOUT REARGATE (DUMPER). Inclined rearside of the body (about 11°) in order to avoid the loss of the rocks.

WITH REARGATE. Flat rearside of the body. The reargate divided in two sections: lower hydraulic section (with two cylinders) and upper balancing and removable section to avoid the loss of material.

Standard features

  • Rear square tipper-body
  • Frontal telescopic cylinder with chromium first extension
  • Bodyfloor in antiabrasion steel HB450, thickness 12 mm
  • Fixed sideboards in antiabrasion steel HB400, thickness 8 mm
  • Special reinforced structure for rocks transport
  • Frontboard with roof cab-protection 2 VERSIONS:
    1- Inclined rearside of the body (about 11°), without reargate (DUMPER)
    2- Flat rearside of the body with reargate divided in two sections (lower hydraulic section with two cylinders and upper balancing and removable section)
  • Pneumatic lifting control
  • Pneumatic lowering control by modulating system P.T.O. and Pump included
  • Spare-wheel holder with mechanical winch, between cab and tipper
  • Zinc-plated tool box, with key
  • Strong steel rear mudguards
  • Safety pole Lateral protections and lateral lights
  • Rear reflective panels and marker strips
  • CE Quality and Safety standards with “Use and Maintenance” handbook
  • Painting process:
    - Shotblasting
    - Polyacrylic primer
    - Polyacrylic enamel paint
    - Painting in cab colour with grey decostripes

Technical info

  • Rear square tipper
  • Shotblasting - Enamel painting
  • Bodyfloor & boards in antiabrasion steel
  • Frontal telescopic cylinder
  • GVW 33 - 40 - 50 ton.
