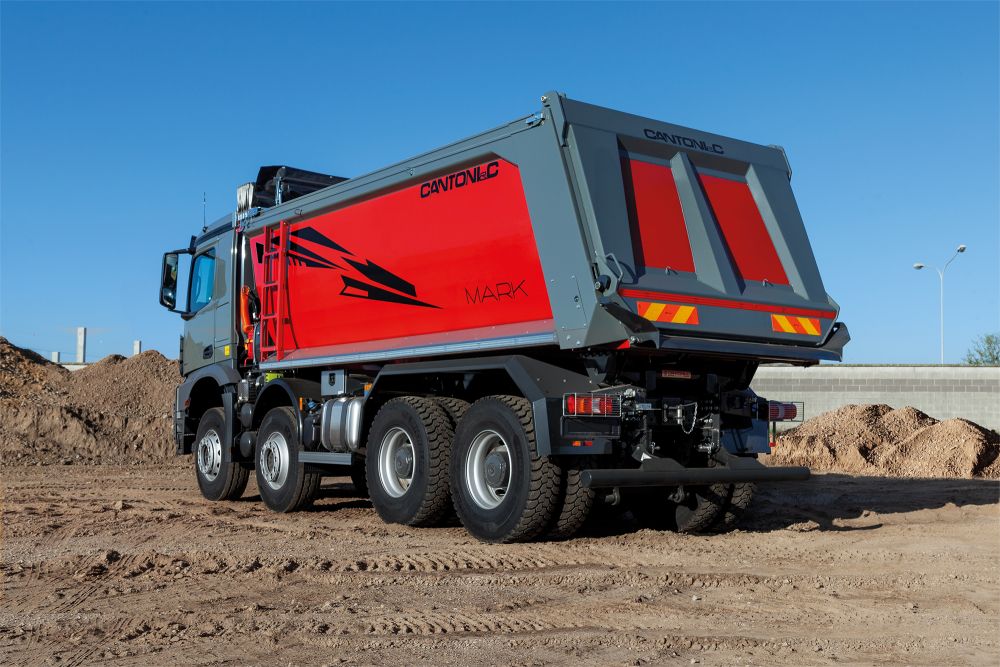

FV MARK Round Shape

FV MARK Round Shape

(Rear tipper)
This model belongs to the rear tippers group with frontal cylinder.
The most important requirement of this version is the greater payload due to its lightness. The special size of the body allows the transport of every kind of materials avoiding the sticking of it inside the body. The rib of the sideboards further strengthens them. The jacks that unhook the boards are positioned externally and laterally to the body, to avoid any interference with the discharging material. Furthermore, the actuating mechanical system, ensures reliability and sturdiness to the whole unhooking automatic system of the board.
The cylinder is hinged to the two ends with spherical joints, which grant it a long lifetime and do not bind it, in case of discharging materials on a rough ground. The sturdiness of the rear cross grants an exceptional stability during the tipping operations, thanks to the improved semi-rigid frontal cylinder and an extra-wide rear fulcrum, which have always marked our tipper as per guarantee of reliability even in the precarious tipping conditions.

Standard features

  • Round shape rear tipper-body
  • Frontal telescopic cylinder with chromium first extension
  • Semi-rigid cylinder
  • Bolted rear fulcrum with extra-width 3 sections tipper, with widened steel sheet of the bodyfloor
  • Bodyfloor in antiabrasion steel HB450, thickness 8 mm.
  • Boards in antiabrasion steel HB400, thickness 5 mm.
  • Fixed sideboards (panel) in antiabrasion steel HB400, thickness 5 mm
  • Fixed sideboards with reinforced longitudinal rib and frontboard with roof cab-protection Reargate with external closing contact
  • Reargate with automatic unhooking device (mechanical), with external hooks
  • Pneumatic lifting control
  • Pneumatic lowering control by modulating system P.T.O. and Pump included
  • Spare-wheel holder with mechanical winch, between cab and tipper Zinc-plated tool box, with key
  • Strong steel rear mudguards
  • Safety pole Lateral protections and lateral lights
  • Rear reflective panels and marker strips C Quality and Safety standards with “Use and maintenance” handbook
  • Painting process:
    - Shotblasting
    - Polyacrylic primer
    - Polyacrylic enamel paint
    - Painting in cab colour with grey decostripes

Technical info

  • Rear half-pipe tipper
  • Shotblasting - Enamel painting
  • Bodyfloor & boards in antiabrasion steel
  • Frontal telescopic cylinder
  • GVW 33 - 40 - 50 ton.

Complete range

  • FV MARK Round Shape
  • PF SEMIROCCIA Square Shape
  • PF ROCCIA Square Shape
  • TL SEMIROCCIA Square Shape
